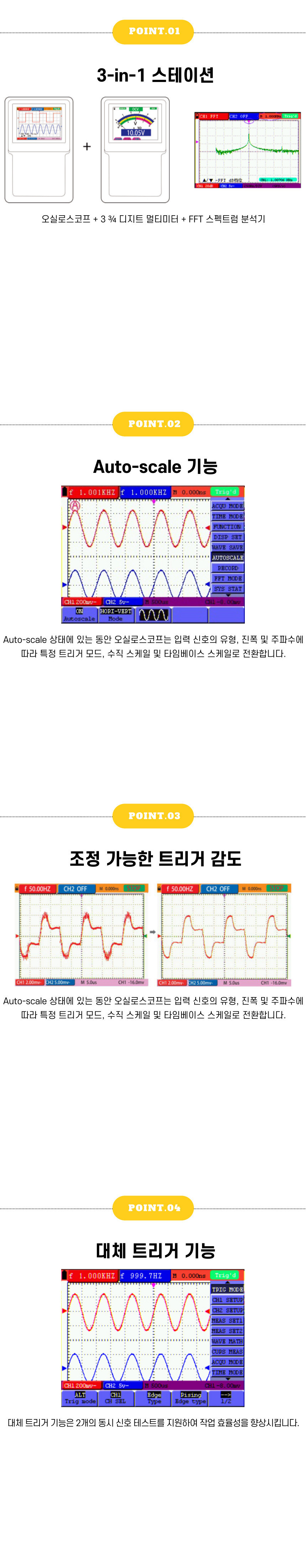

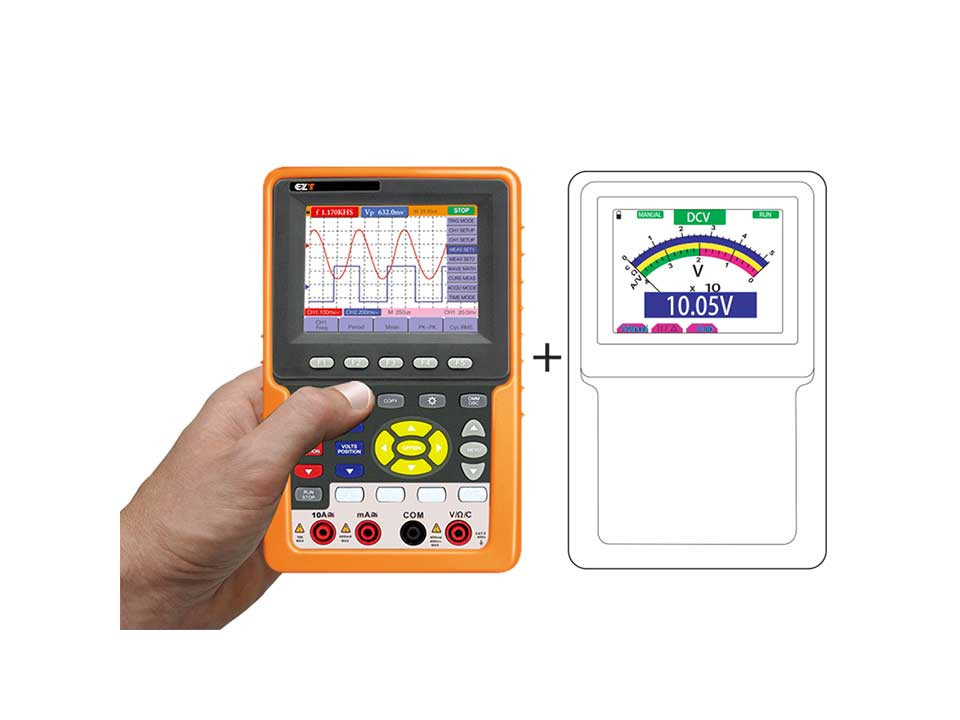

사양
Specifications
모 델 | HDS1021M-N | HDS2061M-N | HDS3102M-N | HDS4202M-N |
대역폭 | 20MHz | 60MHz | 100MHz | 200MHz |
샘플링 속도(실시간) | 500MS/s | 1GS/s | ||
채널 | 1CH | 2CH | ||
수평 스케일(s/div) | 5ns/div~100s/div, step by 1~2.5~5 | 5ns/div~100s/div, step by 1~2~5 | 2ns/div~100s/div, stepby 1~2~5 | |
상승 시간 | ≤ 17.5ns | ≤ 5.8ns | ≤ 3.5ns | ≤ 1.7ns |
디스플레이 | 3.7” color TFT display (640 × 480 pixels) | |||
입력 임피던스 | 1MΩ ± 2%, in parallel with 18pF ± 5pF | 1MΩ ± 2%, in parallel with 15pF ± 5pF | ||
레코드 길이 | 24K points | 6K points | ||
보간 | sin (x) / x | |||
프로브 감쇠 계수 | 1X,10X,100X,1000X | |||
입력 커플링 | DC, AC, and GND | |||
DC 정확도 | average >16 : ±(5% reading + 0.05div) for △V | |||
수직 감도 | 5mV/div~5V/div (at input) | |||
수직 해상도(A/D) | 8 bits | |||
최대 입력 전압 | 400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II | |||
트리거 유형 | Edge, and Video | |||
트리거 모드 | Auto, Normal, and Single | |||
트리거 레벨 | ±6 divisions from screen center | |||
획득 모드 | Sample, Peak Detect, and Average | |||
DC 이득 정확도 | ±3% | |||
자동 측정 | Vpp, Vavg, Vrms, Freq ,Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B↑ , Delay A→B↓ | |||
파형 저장 | 4 waveforms | |||
통신 인터페이스 | mini-USB,mini-RS232 | USB | ||
전원 공급 | 100V-240V AC, 50/60Hz | |||
리튬 이온 배터리 | 7.4V, 6 hours’ operation | |||
크기 | 115(W) × 180(H) × 40(D) mm | |||
무게 | 645.00 g |
멀티미터 사양 | |
---|---|
Full Scale Reading | 3 ¾ digits (max 4000-count) |
다이오드 | 0V-1.5V |
입력 임피던스 | 10 MΩ |
ON/OFF 테스트 | < 50 (± 30) beeping |
전압 | VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz; max input : AC 750V (virtual value) |
전류 | DC : 40mA, 400mA : ±(1.5% ± 1 digit), 10A : ±(3% ± 3 digits) AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 10A : ±(5% ± 3 digits) |
임피던스 | 400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits) |
정전 용량 | 51.2nF - 100uF : ±(3% ± 3 digits) |
